CHC AlphaAir 10
Detail Produk
Highlights

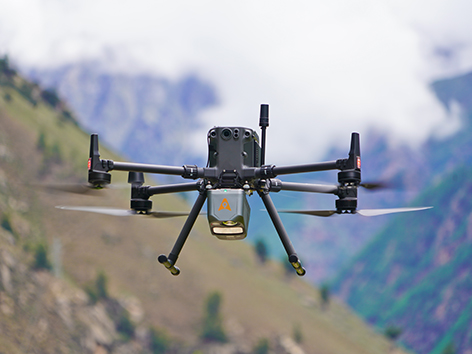

The AlphaAir 10 is a professional airborne LiDAR+RGB system designed to meet the demanding requirements of UAV LiDAR mapping and drone photogrammetry. This advanced solution integrates superior LiDAR technology with accurate GNSS positioning, IMU orientation, and a professional full frame orthophoto camera. Together with CHCNAV's point cloud and image fusion modeling software, the AA10 delivers survey-grade accuracy, efficiency, and cost-effectiveness in 3D data acquisition and processing.
Main Features
5 mm repeated range and 2-5 cm absolute accuracy.
Integrated full-frame orthographic camera.
Benefits and Performances

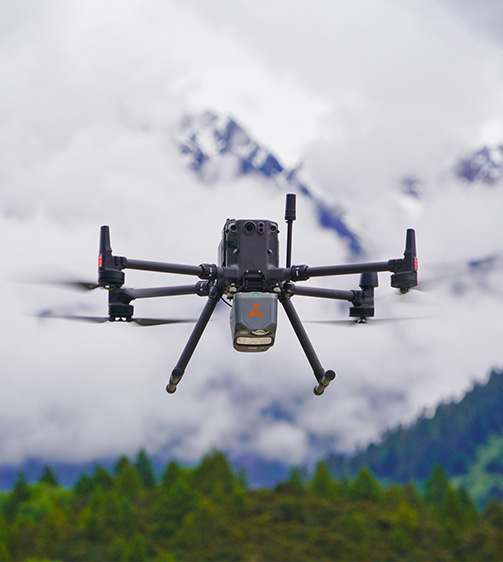

01 High-Precision LiDAR Integration
Achieve unmatched accuracy with our high-precision LiDAR technology, offering 5 mm repeated range accuracy and 2-5 cm absolute precision. Enhance your mapping projects with reliable, detailed data even in

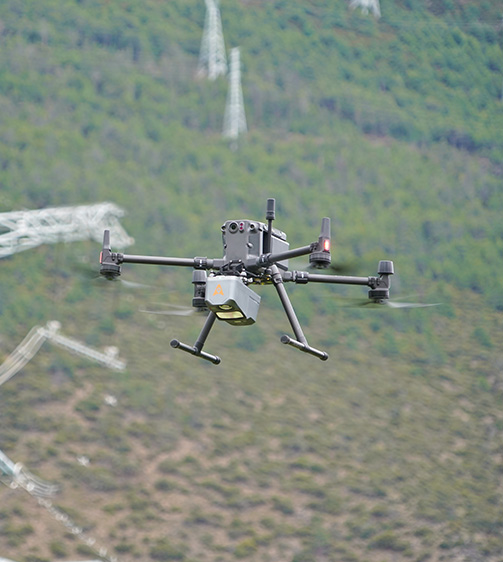

02 Long-Range Scanning Capability
Extend your survey range with up to 800 m measurements and 500,000 points per second scanning. Cover large areas efficiently and with high detail, maximizing survey productivity.

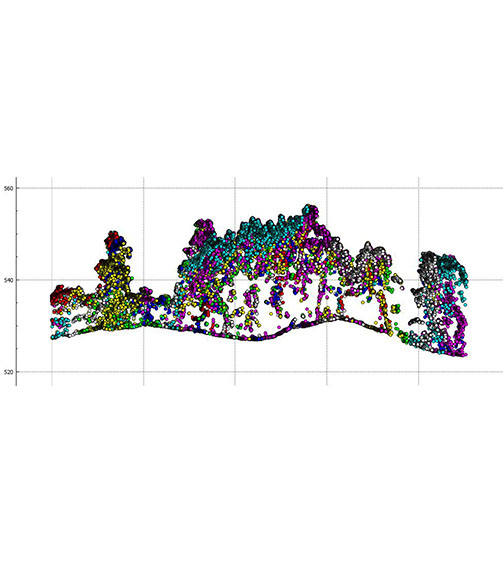

03 Enhanced Vegetation Penetration
Utilize advanced multi-target capabilities with up to 8 target echoes, enabling effective penetration of dense vegetation. Create accurate DEMs and DSMs in challenging environments with improved ground surface acquisition.

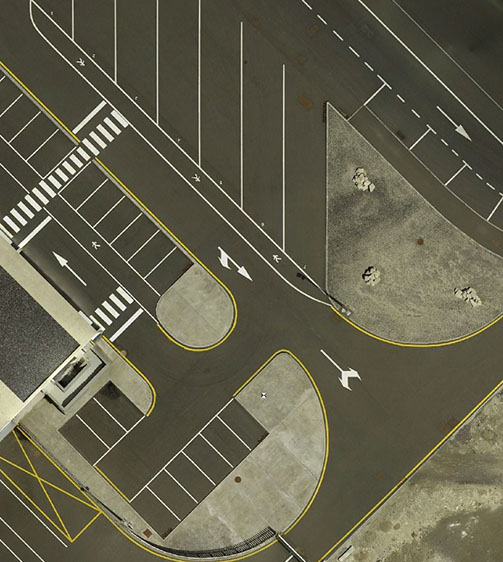

04 High-Resolution Imaging
Capture detailed imagery with the integrated 45 MP orthographic camera. Generate high-resolution point clouds and orthomosaic outputs for superior 3D model reconstruction and realistic textures.

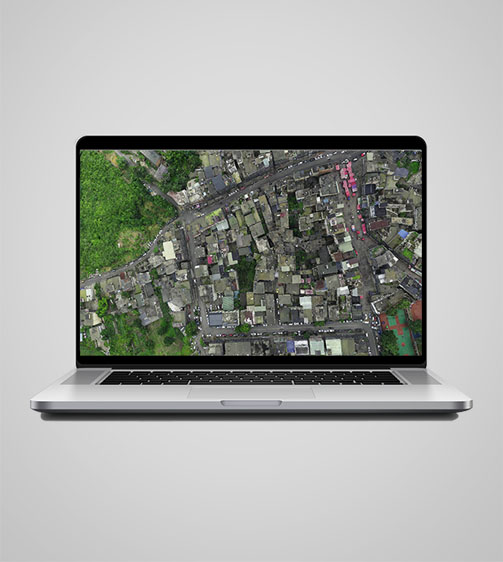

05 Efficient Workflow Integration
Streamline your 3D data acquisition with CoPre and CoProcess software, facilitating post-processing and feature extraction. Achieve high-quality results with an easy-to-use, efficient workflow from data collection to final output.

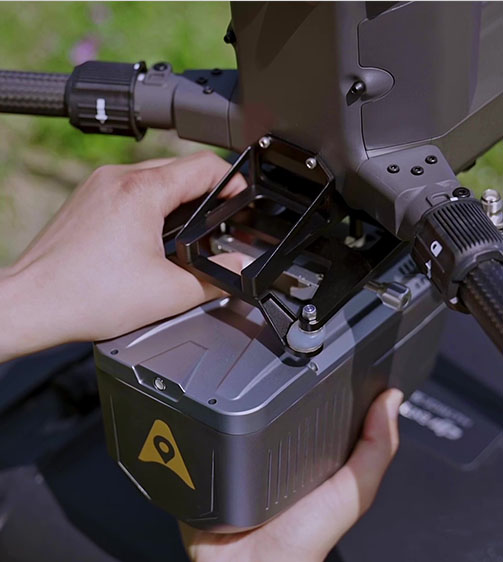

06 Lightweight and Versatile Design
Benefit from a compact, lightweight system (1.55 kg) that is easy to mount on various UAVs. Enjoy simplified installation with Alphaport’s one-click connection, enhancing operational flexibility.
Use Cases
Digital Elevation Model Generation
Forest Canopy Mapping
Mining Site Surveys
Detailed Specifications
- Range : 800 m
- Scanning rate : 500.000 pulses/sec
- Field of view : 75°
- Returns : Up to 8
- GNSS : Full GNSS
- IMU : 500 Hz
- Precision max. : < 5 cm H / < 5 cm V
- Resolution : 45 MP
- Focal length : 21 mm
- Camera : Optional external camera
