ComNav Sino T300

Kategori: Alat Survey Telekomunikasi,GPS Geodetik | Dilihat: 57 Kali

Call Me
Kode Produk: T300

Stok: Stok Tersedia

Berat: 30 Kg

Sejak: 21-05-2024

Call Me
Butuh bantuan?
Support produk siap membantu.

Detail Produk

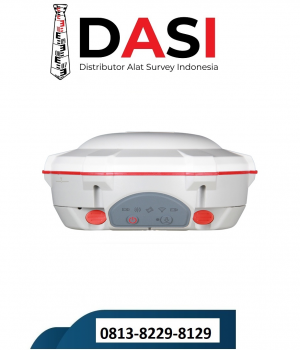

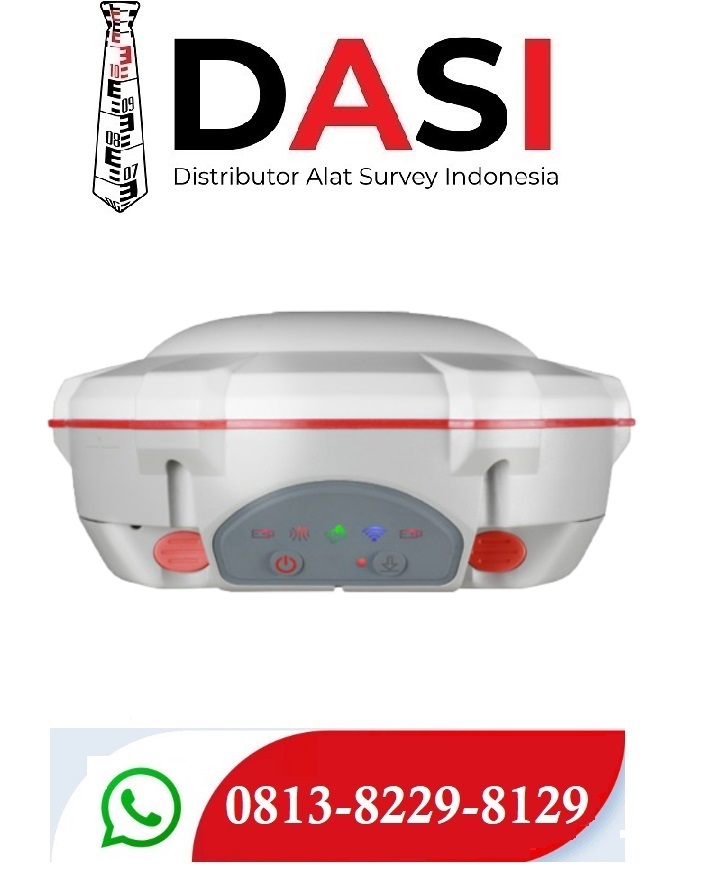

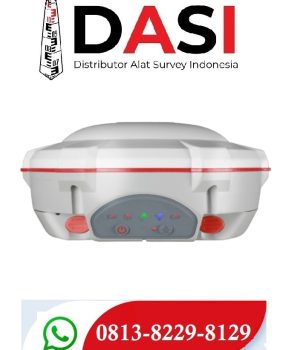

SinoGNSS T300 GNSS receiver is a compact RTK GNSS receiver tracking all working constellations, combines 4G/TX & RX into one device, and work fluently with Android-based Survey Master software, for centimeter accuracy survey on demand.


GPS L1/L2/L5, BeiDou B1/B2/B3,GLONASS L1/L2, Galileo E1/E5a/E5b
Compact Design
Hot Swap Battery
User-friendly Interface
Built-in 4G/UHF

Full-constellation tracking

The T300 tracks all working and planned GNSS constellations including GPS, GLONASS, BeiDou, Galileo and SBAS.

Built-in GPRS/ GSM/4G modem ensures the T300 seamlessly work with all kinds of CORS, and 0 – 2 Watt internal UHF allows you more convenient and effective field work.

Intuitive workflow

The T300 is able to provide easier survey workflow via Survey Master, improving productivity for both beginners and professional surveyors.

Picture and Videos


8 mm + 1 ppm

RTK Horizontal accuracy:

Signal tracking Channels:

572 channels

2.5 mm + 1 ppm

Post Processing Horizontal accuracy:

15 mm + 1 ppm

RTK Vertical accuracy:

GPS, BeiDou, GLONASS, Galileo and SBAS

Satellite tracking:

less than 10 s

Initialization time:

5 mm + 1 ppm

1 Serial port (7 pin Lemo):

Baud rates up to 921,600 bps

Correction data I/O:

RTCM 2.X, 3.X, CMR, CMR+

1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

Position data output rates:

UHF modem (optional):

Tx/Rx, 410-470 MHz

Bluetooth® :

V4.0 protocol

Tilt sensor:

maximum 30°tilt compensation

4G, 3G, GSM
