HANNA HI 9813-6

Kategori: Alat Ukur Lingkungan & Hidrologi,TDS Meter | Dilihat: 9 Kali
Brand:

Rp 10.000.000
Rp 7.000.000
Kode Produk: HANNA HI 9813-6

Stok: Stok Tersedia

Berat: 2 Kg

Sejak: 13-09-2022

Rp 10.000.000
Rp 7.000.000
Wishlist
Butuh bantuan?
Support produk siap membantu.
Whatsapp
Telp

Detail Produk

The HI9813-6 is an economical, water resistant, portable meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature with a single probe. The HI9813-6 features the Hanna Instruments CAL Check that will allow the user to know when the probe needs to be calibrated or replaced. The meter operation is simplified with dedicated buttons for measurement modes to be displayed on the LCD and knobs for single point calibration of pH and EC.

The HI9813-6 has a variable EC to TDS conversion factor that automatically changes from 0.56 to 0.78 ppm = 1 µS/cm based on the actual EC reading. This range is suitable for agricultural, greenhouse and hydroponic applications. The temperature correction coefficient (β) is fixed at 2%/°C.

The HI9813-6 portable meter features a large LCD which displays either pH, EC, TDS or temperature readings along with tutorial instructions. The pH readings are displayed with a 0.1 resolution and an accuracy of +/-0.1 pH while the EC and TDS readings are displayed with a 0.01 mS/cm and 1 ppm (mg/L) resolution and 2% full-scale accuracy. The EC range of the HI9813-6 is from 0.00 to 4.00 mS/cm and TDS is from 0 to 1999 ppm. The temperature correction coefficient (β) is fixed at 2 %/oC and allows for automatic temperature compensated measurements of EC and TDS. The HI9813-6 is a basic pH/EC/TDS meter that is calibrated manually to a single point with the use of two trimmers. pH is calibrated to pH 7.01 while EC/TDS is calibrated to either 1.41 mS/cm (1413 µS/cm) or 1500 ppm. The LCD screen has battery life indicator as well as on-screen tutorial messages. The supplied HI1285-6 probe is a polypropylene body, amplified pH electrode with a built-in EC/TDS and temperature sensors. The amplifier for the pH electrode prevents interference from humidity and electrical noise from common sources including from motors, ballasts or pumps. The HI9813-6 is a versatile meter for the agriculture, greenhouse and hydroponics industries.

The HI9813-6 meter also offers the CAL Check™ feature that alerts the user to a problem with a pH electrode. This feature is important for customers that calibrate only to pH 7.0; if there is a fracture on the pH glass of the electrode, the pH meter will always display pH 7.0 regardless of the solution being measured. This can be disastrous for the person that calibrates at pH 7.0 and takes readings of samples with an expected pH of 7.0. The user will never be aware that there is a problem with the electrode. This can result in inaccurate pH measurements, which for a greenhouse can affect the growth of the plants. Placing the HI1285-6 pH/EC electrode in the HI50021 CAL Check™ solution helps users determine if the probe needs to be calibrated, cleaned or replaced. When the probe is placed in solution the user presses the “Check” key. The meter runs CAL Check™ diagnostics and will display either “Probe is OK” or “Clean Probe and Calibrate”. If the reading is around pH 4.0 when the probe is placed in the solution then the probe is broken and needs to be replaced.


Features:



  • CAL Check™
  • Alerts users of calibration status (HI9813-6)
  • ATC
  • Automatic temperature compensation
  • Help feature · On-screen tutorial messages
  • Battery indicator
  • Indicates how much battery life is in the instrument
  • Waterpoof
  • Water-resistant

What's In The Box:


  • (1) HI1285-6 pH/EC/TDS/°C probe with Cal-CheckTM
  • (1) HI70007 pH 7.01 buffer solution sachet
  • (1) HI70442 1500 ppm calibration solution sachet
  • (1) HI70031 1413 µS/cm calibration solution sachet
  • (2) HI700661 electrode cleaning solution sachets
  • (2) HI50021 calibration check solution sachets
  • (1) 9V battery
  • (1) Instructions

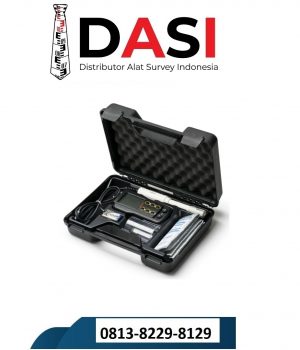

  • (1) Rugged carrying case
