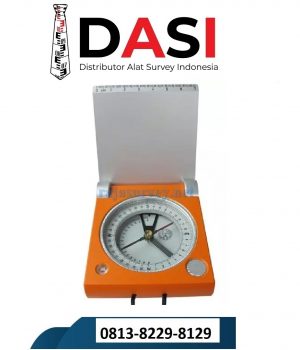

Kompas Geologist Freiberg

Kategori: Kompas | Dilihat: 8 Kali
Brand:

Rp 15.000.000
Rp 11.500.000
Kode Produk:

Stok: Stok Tersedia

Berat: -

Sejak: 05-04-2023

Rp 15.000.000
Rp 11.500.000
Wishlist
Butuh bantuan?
Support produk siap membantu.
Whatsapp
Telp

Detail Produk

Spesifikasi Kompas Geologist Freiberg

PRODUCT CODE : FREGEO

Model Freiberg Geologist Compass c/w case.

The Geological compass secures by handy format and case measuring plate convenient handling than single-circuit and double circuit compass. It is suitable for general field geological work and for special structural geology, deposit-tectonic and ingenieurgeologisch- rock mechanical work.

Have a pendulum inclinometer, the declination can be adjusted by means of gear drive. Its needle is equipped to eliminate the inclination with a sliding copper weight. The pitch can be adjusted so that the declination can be set. In the compass housing is a clinometer for slope high precision measurements. A circular level and a side-mounted plate level possible even when in hard to reach measuring points, a leveling of the instrument. The case measuring plate is next to the measuring of angles case also for the protection of the cover glass.

 proven and practical

o    sanded magnetic needle, on edge

o    Locking of the magnet system possible

o    simple adjustment of the pitch circles

o    possible by lockable inclinometer tilt measurements greater accuracy

o    Colored label of height circle and magnetic needle guarantee clarification of the case, the direction of geological formations

o    Spirit level for leveling

o    lateral plate level for measurements in hard to reach places

o    Case measuring plate as a protection of the cover glass and case for the measurement of angles.

Technical specifications





Compass pitch





counterclockwise, numbered



every 10 ° (10 gon)



diameter



45 mm



scale value



2 ° (2 gon)



estimate



0.5 ° (0.5 gon)



Height pitch



in case measuring plate



diameter



22 mm



scale value



5 ° (5 gon)



estimate



1 ° (1 gon)



clinometer





measuring range



± 90 ° (± 100 gon)



scale value



2 ° (2 gon)



estimate



0.5 ° (0.5 gon)



leading edge





pitch length



70 mm



scale value



1 mm



Settling of the magnetic needle



<50 s



Accuracy of the indication of direction



± 0.5 ° (± 0.5 gon)



declination



any



tilting the



225 ° (250 gon)



Case measuring plate



Specifying the circular level



about 40 '



Specifying the plate level



approx 60'



instrument





Dimensions



93 x 76 x 22 mm



weight



0.28 kg



Pocket



104 x 91 x 45 mm








Brosure
