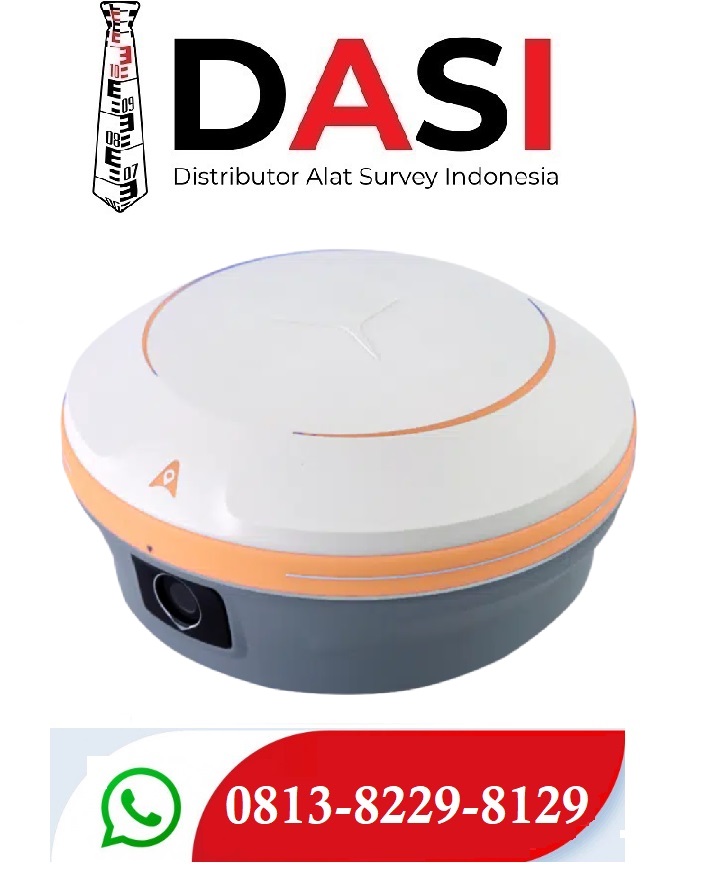

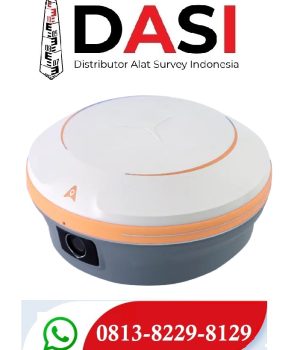

CHCNAV i93
Detail Produk
1408 CHANNELS, iSTAR AND HYBRID ENGINE
GNSS Sensors
VISUAL NAVIGATION AND STAKEOUT
Effortless one-step stakeout at a glance
The i93 integrates star-level cameras to provide an immersive 3D visual navigation and stakeout experience. With LandStar software’s 3D visual view, surveyors are guided by a clear, eye-catching directional arrow and real-time distance with the stakeout point marked directly on the ground. Moreover, 3D visual capabilities are also available for line stakeout and CAD-based map stakeout, making operations similarly effortless, intuitive, and efficient. This simplifies the stakeout process, allowing for quick completion in seconds and increasing efficiency by up to 50% for less experienced field operators.
VISUAL SURVEY AND 3D MODELING
Easy measurements: See accuracy in 3D
The i93 is a cutting-edge surveying tool that combines GNSS, IMU, and two premium global shutter cameras with video photogrammetry technology. It delivers survey-grade 3D coordinates from real-world video capture in seconds, making it easy to survey previously hard-to-reach, signal-obstructed, and hazardous points in the field, such as under overpasses, under eaves, and near power poles. With its dynamic panoramic video capture and automatic image matching, the i93 improves productivity by up to 60%. Automatic high-speed continuous shooting and adjacent image generation with up to 85% overlap ensure high processing success. Surveyors looking for ease, speed, and accuracy will find the i93 an ideal tool.
FAST, RELIABLE INDUSTRIAL AUTO-IMU
Reliable accuracy with automatic IMU initialization
The i93 GNSS features CHCNAV’s state-of-the-art 200Hz Auto-IMU, which eliminates the need for manual initialization and simplifies surveying operations in the field. With IMU corrections available even when the range pole is carried on the shoulder, in hand, or placed horizontally, the i93’s IMU-RTK automatic pole tilt compensation technology can boost surveying, engineering, and mapping speed and efficiency by up to 30%. Measuring and staking out with survey-grade accuracy over a pole tilt of up to 60 degrees is fast, easy, and highly productive, making the i93 the perfect solution for engineers, site managers, and surveyors.
Specifications
Positioning
GNSS • Full GNSS
IMU • 200 HZ
Precision Max • 0.8 cm H / 1.5 cm V
Physcial
Weight • 1.15kg
Dimensions • 152 x 81mm
Battery Life • Up to 34 hours RTK rover
Connectivity
Wireless • Bluetooth, Wi-Fi, NFC
Cellular • 4G LTE
Modem • 410-470 MHz, Rx/Tx
